Quickstart Guide Part 4: Models With More Than One Condition

Part 2 of this guide introduced conditions and states - the structures that define how agents behave during a simulation. You explored a model named alive that had a single condition - ALIVE - made up of two states, Asleep and Awake. Agents moved between those two states over the course of the simulation, depending on the time of day.

In this lesson, you will examine an updated version of the alive model that includes two conditions - ALIVE and WATCH_TV. By introducing multiple conditions - and a few new features of the FRED modeling language - we can create richer, heterogeneous behaviors for the agents in our models.

By the end of this notebook, you should be able to: 1. Describe how agents are subject to multiple conditions during a simulation. 2. Know that, at any given time step, agents will be in one state (and one state only!) within each condition. 3. Use the if predicate to select agents based on some criterion that you define. 4. Have agents randomly select an item from a list using the sample_with_replacement command. 5. Open a file in the startup block and have agents write information to it using the print_csv command.

As always, start by importing the Python packages that you'll use for this lesson:

import pandas as pd
import time

# Epistemix package for managing simulations and simulation results in Python
from epx import Job, ModelConfig, SynthPop

4.1 Conditions and States Recap

As you first encountered in Part 2, a condition is a set of related rules, behaviors, and actions that agents are subject to during a FRED simulation. These component parts are described by states. Conditions track aspects of individuals and of the population that are of interest to your business need or research question.

Conditions are defined in condition blocks, and each condition can include one or more state blocks. Each condition block identifies a start_state, in which agents will be placed at the start of the simulation.

Each state block defines the three types of rules that describe the state: action rules describe what agents should do while in that state, wait rules describe how long they will remain in the state, and transition rules describe which state within the condition each agent should move to next.

In Part 2, we defined an ALIVE condition that looked like this:

condition ALIVE {
    start_state = Asleep

    state Asleep {
        # Action rules

        # Wait rules
        wait(until(7am))

        # Transition rules
        default(Awake)
    }

    state Awake {
        # Action rules

        # Wait rules
        wait(until(10pm))

        # Transition rules
        default(Asleep)
    }
}

In this simple model, agents were placed in the Asleep state when the simulation started at midnight. At 7am, they transitioned to the Awake state. Then, agents remained awake until 10pm, at which point they went back to sleep by transitioning to the Asleep state. This cycle repeated each day of the simulation.

4.2 Models with Multiple Conditions

The agents in the model above aren't doing much of interest - they are simply awake or asleep depending on the time of day. We can build up richer agent behavior in a simulation by specifying multiple conditions in our model.

During each time step of the simulation, agents are assigned a state within each condition defined in the model. Conditions can be completely independent of each other, or they can be written in a way that enables behavior in one condition to influence an agent's state in another condition.

When the simulation begins, agents are placed into the start_state specified in each condition. Agents can only be in one state per condition at any given time. Additionally, agents are subject to all conditions specified in a model at any given time step.

At every time step, an agent's status in the simulation will be described by one state, and one state only, in each condition defined in the model.

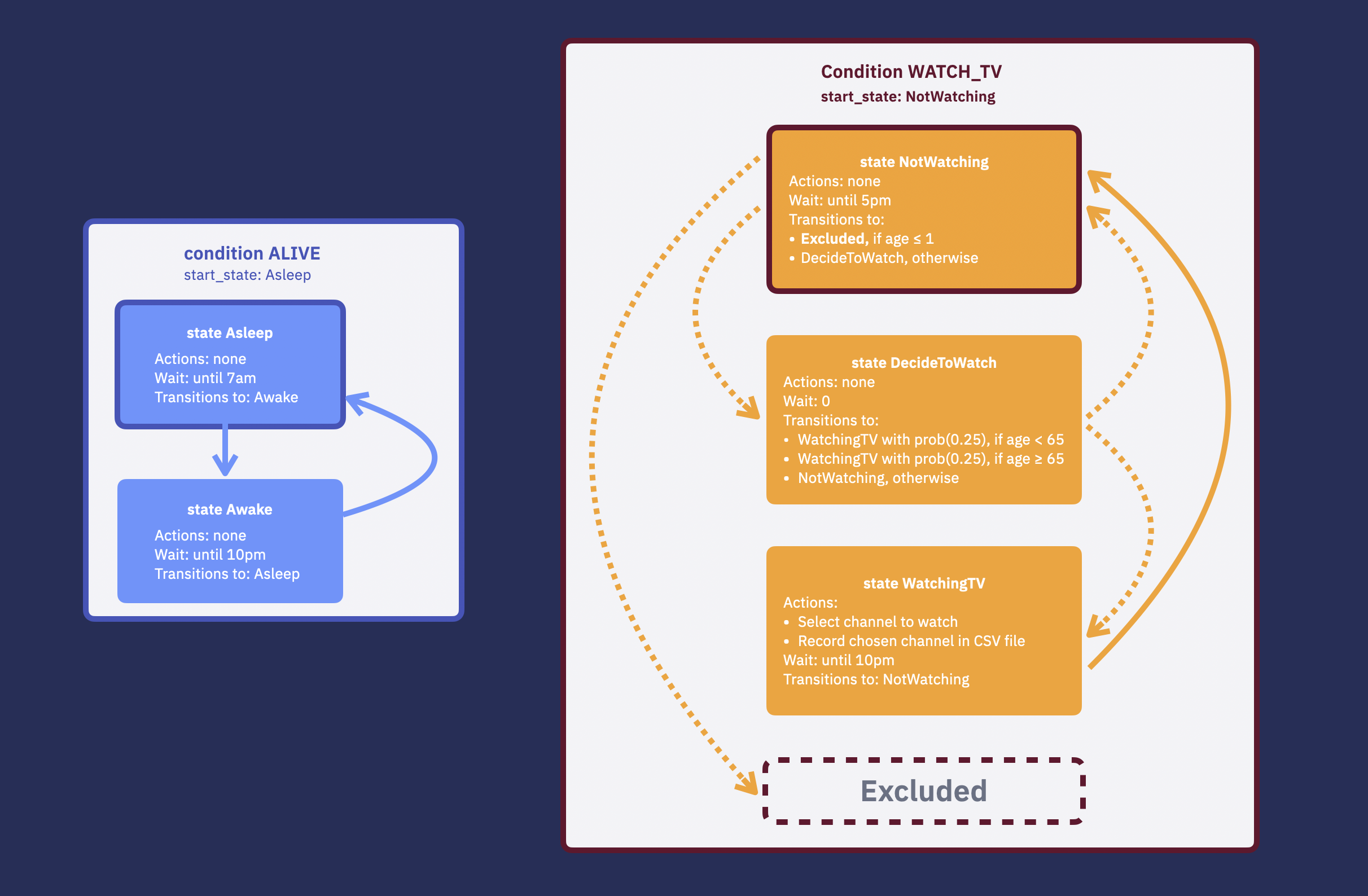

Click on the alive_and_tv.fred file to the left to examine the model. Note that we now have two conditions - ALIVE, which is the exact same as in our previous model, and WATCH_TV, which includes rules that describe how (certain) agents decide whether to watch TV at 5pm each day. Here is what this model looks like in diagram form:


In this diagram, we have represented state transitions that are guaranteed with solid arrows and state transitions that are probabilistic or only apply to a subset of agents with dotted arrows.

You will dig into the details of this new condition in a second, but for now execute the cell below to run the model:

# create a ModelConfig object
tv_config = ModelConfig(
                   synth_pop=SynthPop("US_2010.v5", ["Loving_County_TX"]),
                   start_date="2022-05-10",
                   end_date="2022-05-17",
               )

# create a Job object using the ModelConfig
tv_job = Job(
    "alive_and_tv.fred",
    config=[tv_config],
    key="tv_job",
    fred_version="11.0.1",
    results_dir="/home/epx/qsg-results"
)

# call the `Job.execute()` method
tv_job.execute()

# the following loop idles while we wait for the simulation job to finish
start = time.time()
timeout   = 300 # timeout in seconds
idle_time = 3   # time to wait (in seconds) before checking status again
while str(tv_job.status) != 'DONE':
    if time.time() > start + timeout:
        msg = f"Job did not finish within {timeout / 60} minutes."
        raise RuntimeError(msg)
    time.sleep(idle_time)

str(tv_job.status)

Now, take a look at some of the outputs of this simulation. For example, you can see the number of new agents entering the starting Asleep state in the ALIVE condition with the following command:

tv_job.results.state(
    condition="ALIVE",
    state="Asleep",
    count_type="new"
)

This output is identical to the output from the single condition model that you ran in Part 2. Recall that on the first day all agents enter the Asleep state twice: once at midnight when the simulation starts, and then again at 10pm. This is why the new count is 140 on the first day.

Next, examine the agent counts for the start condition in WATCH_TV, which is called NotWatching:

tv_job.results.state(
    condition="WATCH_TV",
    state="NotWatching",
    count_type="new"
)

You can see here that the pattern of agent counts entering the start state looks very similar for both conditions, except that three agents don't seem to be participating in the WATCH_TV condition (more about that shortly). The simulation tracks which states agents are in for each separate condition at each time step. Agents are subject to both conditions at the same time, unless a rule is written that excludes them. Let's take a detailed look at the WATCH_TV condition to understand what is happening here.

4.3 A Detailed Look at the WATCH_TV Condition

The start state in the WATCH_TV condition is called NotWatching, and looks like this:

    state NotWatching {
        # Action rules

        # Wait rules
        wait(until(5pm))

        # Transition rules
        if (age() <= 1) then next(Excluded) # Take babies out. They don't watch TV!
        default(DecideToWatch)
    }

All 70 agents in Loving County enter this state at the start of the simulation. The wait rule here specifices that agents will wait until 5pm before transitioning to the next state. Once the simulation clock reaches 5pm, each agent will follow the transition rules to decide which state to move to next.

You might notice something new here. This model uses a conditional statement for the first time to control which agents to include in the condition. Take a closer look at this line of code:

        if (age() <= 1) then next(Excluded) # Take babies out. They don't watch TV!
The use of if here tells the FRED simulation engine that the rest of the line should be completed if the condition inside the parentheses is true - hence the term "conditional." Conditional statements of this form are called predicates in the FRED modeling language.

The age of each agent is evaluated in the predicate statement. If the agent's age is equal to 0 or 1, they are moved to the special state we first encountered in Part 3 called Excluded. Recall that you can think of Excluded as a "does not apply state" that is included in every condition by default and cannot be changed. It is functionally equivalent to an infinite wait state, so agents in the Excluded state no longer participate in that condition for the rest of the simulation.

Here, the model is written to exclude babies of age 0 or 1, because we're assuming that they don't watch TV. This may not be a great assumption, but the nice thing about agent-based modeling is that the assumption is explicit - others can see it, critique it, or even modify the model to rely on different assumptions, if they so choose.

The default transition for all agents not satisfying the predicate statement (i.e., all agents age 2 or older) is to a state named DecideToWatch. Since there are three agents whose age is at most 1 in Loving County, TX, the number of agents moving to the next state is 67. You can see this if we examine the counts of agents entering the DecideToWatch state:

tv_job.results.state(
    condition="WATCH_TV",
    state="DecideToWatch",
    count_type="new"
)

Once the agents who are at least 2 years old enter the DecideToWatch state, the model includes two additional if statements to introduce different behavior for agents, depending on their age:

    state DecideToWatch {
        # Action rules

        # Wait rules
        wait(0)

        # Transition rules
        if (age() < 65) then next(WatchingTV) with prob(0.25)
        if (age() >= 65) then next(WatchingTV) with prob(0.75)
        default(NotWatching)
    }

First, it's assumed that there is some chance that each agent will decide not to watch TV on a given day, perhaps because they are doing something else. Second, it is further assumed that agents 65 and over are more likely to watch TV than those under 65. The two predicate statements here introduce a probabilistic state transition. The statement

        if (age() < 65) then next(WatchingTV) with prob(0.25)
means that each agent under the age of 65 has a 25% probability of transitioning to the WatchingTV state. Agents over 65, in contrast, transition to WatchingTV with a probability of 75%. The default(NotWatching) transition rule means that any agent that doesn't transition to WatchingTV is placed back in the NotWatching state, where they wait until the clock again reaches 5pm. Then, the cycle repeats.

These probabilistic transition rules introduce stochasticity, i.e., randomness, into the model. If you examine the number of agents entering the WatchingTV state, you will see that it differs each day:

tv_job.results.state(
    condition="WATCH_TV",
    state="WatchingTV",
    count_type="new"
)

Allowing for probabilistic behavior of this kind is one of the strengths of agent-based modeling - it allows you to develop models that can explore the range of outcomes that emerge as agents make different decisions.

4.4 Choosing a Channel to Watch

In the WatchingTV state of the WATCH_TV condition, the agents finally take an action: they choose which channel to watch. The code to implement this action is included in the state block for the WatchingTV state, starting on line 72 of the alive_and_tv.fred model file.

Take a closer look at the first action rule defined in this state:

        my_channel = sample_with_replacement(channels, 1) # agent randomly chooses a channel

This rule instructs agents to randomly select a channel from the channels list, and assign it to their agent variable my_channel. This is achieved using the sample_with_replacement function in FRED, which creates a list of randomly selected numbers from an input list. The second argument - in this case , 1 - specifies that the function should return a list containing a single value.

The channels list is defined in the variables block at the start of the model file. It contains 5 channel numbers that are available to the residents of Loving County; 5, 23, 40, 48, and 76. Using sample_with_replacement, each agent will randomly select a channel to watch each time they enter this state.

channels = tv_job.results.csv_output('channels.csv')
channels

This data set can now be processed and visualized using standard Python tools. For example, you can see the total number of times that agents of each race watched each channel during the simulation using the groupby method for pandas DataFrames:

channels[['id','race','my_channel']].groupby(['race','my_channel']).count().rename(columns={"id": "count"})

A note about the startup block

This model introduced a new code block you haven't seen before: the startup block.

Here is what it looks like in this model:

startup {
    open_csv(channels.csv, "id", "race", "age", "today", "my_channel")
}
The startup block is a powerful feature of the FRED modeling language that can be used to set up agents, variables, and files for use during the simulation. In this case, the model uses the startup block to open the channels.csv file and create column headings to describe the data that will be written to the file during the simulation.

A file must be open in the computer's memory in order to write output to it. By including this line in the startup block, which is executed at the very start of the simulation, before the agents do anything, you can ensure that the file is open and ready for the agents to access to when they enter the WatchingTV state.

You will learn more about startup blocks in a later lesson.

# deleting our job now that we are done with it
tv_job.delete(interactive=False)

4.6 Lesson Recap

In this lesson, you examined and ran a model with two conditions. You also encountered a few ways to introduce probabilistic agent behavior into your model. The most important takeaways are: 1. Models can define more than one condition to which agents are subject during a simulation. 2. At every time step, an agent's status in the simulation will be described by one state, and one state only, in each condition defined in the model. 3. Predicates are conditional statements that can segment agent behavior based on a property of the agent, like age or sex. 4. Predicates can be used in combination with action, wait, and transition rules to control agent flow in the simulation and to introduce randomness. 5. The FRED modeling language has built-in functions to select items randomly from a list and to have agents record information in a CSV file. 6. The startup block helps you set up aspects of your simulation before it starts to run, like opening a file that agents will write to during the course of the simulation.

In Part 5, you will use a multi-condition model to explore the places that are defined as part of the Epistemix synthetic population. You will also make a visualization that allows to you display these places on a map. Onward!

4.7 Additional Exercises

  1. Try changing the agent bedtime in the ALIVE condition. How does this affect the WatchingTV state in the WATCH_TV condition?

  2. Rewrite the alive_and_tv model so that agents can select their bedtime from a list of options (e.g., 9, 10, or 11pm). Ensure that each agent's bedtime behavior is echoed by their TV watching behavior.

Exercise Solutions

  1. Interacting conditions

Changing the time at which agents transition from the Awake to Asleep state has no effect on their behavior in the WATCH_TV condition! Neither the model that we have described using the FRED language, nor the software that actually executes the simulation, would consider an agent that is simulataneously in the ALIVE.Asleep state and the WATCH_TV.WatchingTV state to be contradictory in any way.

It is up to you, the model designer, to account for unrealistic agent behaviors like this.

  1. No TV after bed

Below, there is an updated variables block and an updated condition block for the ALIVE condition. This updated model makes use of the set_state function. When agents enter the Asleep state of the ALIVE condition, there is an action rule that changes their state in the WATCH_TV condition.

variables {
    shared list channels
    channels = list(5, 23, 40, 48, 76)

    shared list time_awake
    time_awake = list(14, 15, 16)

    agent list my_channel
    agent list my_awake_hours
    agent numeric race
}

condition ALIVE {
   start_state = Asleep

    state Asleep {
        # Action rules
        set_state(WATCH_TV, WatchingTV, NotWatching)

        # Wait rules
        wait(until(7am))

        # Transition rules
        default(Awake)
    }

    state Awake {
        # Action rules
        my_awake_hours = sample_with_replacement(time_awake, 1)

        # Wait rules
        wait(my_awake_hours[0])

        # Transition rules
        default(Asleep)
    }
}

Note that the variant of the set_state function used above only moves agents who are in the WatchingTV state into the NotWatching state. This prevents babies (agents who are at most 1 year old) from re-entering the WATCH_TV.NotWatching state from the Excluded state. It also prevents agents who were already not watching TV from re-entering the NotWatching state. These re-entries would be inconsquential in this model, but that is not always the case!
